Positioning is done using all four sides of workpiece
1. Purpose

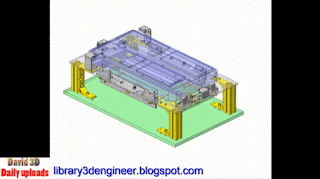

Centering station where the plastic container position is adjusted before the robot removes the container from the station.
Points for use
Centering can be performed just by adjusting the reference sides.
2. Target workpiece
Shape: Plastic container
Dimension/Size: W544×D297×H78mm
Mass: 2.6kg (including the workpiece in a tray)
(Box 0.8kg)
(Cap 0.5kg)
(Workpiece 1.3kg)
3. Design Specifications
+ Operating Conditions or Design Requirements
Centering stroke: 10mm
External Dimension: W670 × D390 × H283mm
+ Required Performance
Workpiece Stop Accuracy 1mm
+ Selection Criteria for Main Components
Cylinder capacity
